SX093000C LCD computer board controller of industrial automatic washing machine commercial washing machine accessories

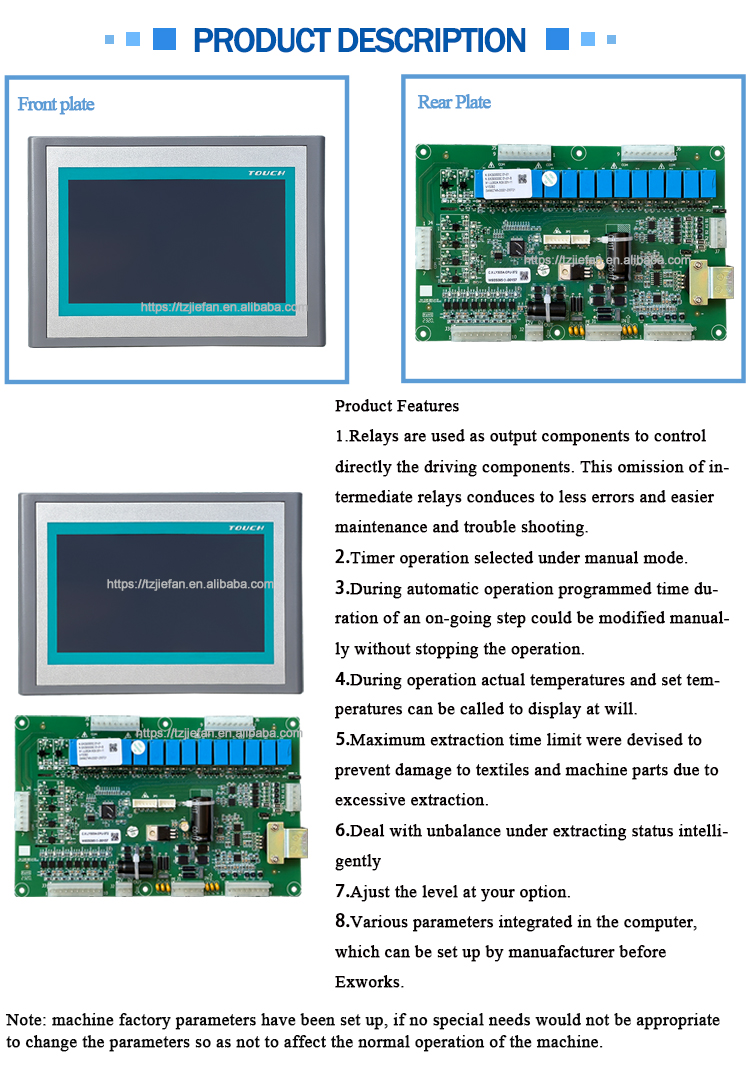

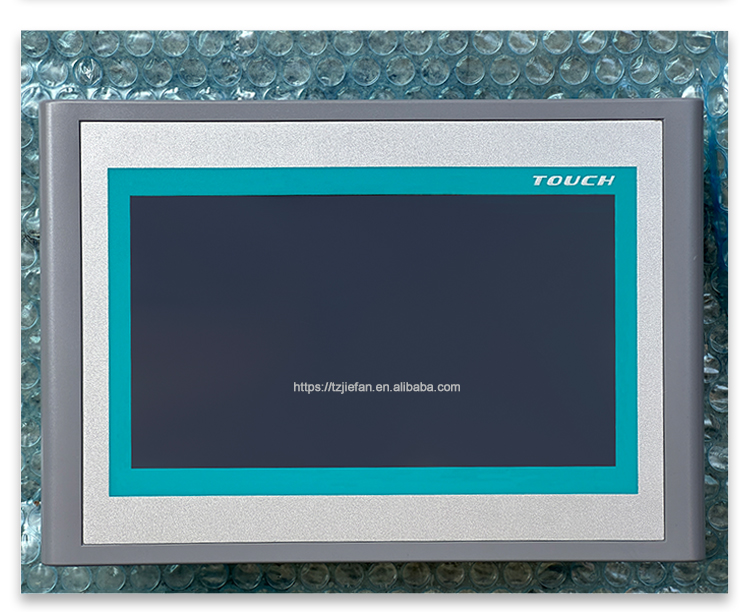

SX093000C controller is specially designed for the control of the automatic washer extractor. It features stability and reliability in operation. SX093000C controller has very convenient human-machine interaction interface with TFT display to show state of operation of the machine including temperatures and thus helps monitoring effect. A reliably sealed, water and dust proof key panel is adopt which contains touch pannel.
Availability:
Quantity:
Inquire Add to Basket

  • SX093000C

  • KEFALONG

Product Description

洗脱机详情新_01



SX093000C controller is specially designed for the control of the automatic washer extractor. It features stability and reliability in operation. SX093000C controller has very convenient human-machine interaction interface with TFT display to show state of operation of the machine including temperatures and thus helps monitoring effect. A reliably sealed, water and dust proof key panel is adopt which contains touch pannel. SX093000C主图1
Use Equipment Automatic washing machine,Cleaning machine
Unit SET
Product model SX093000C
Boundary dimension 215*149mm
Mounting hole size 190*135mm

SX093000C详情_02SX093000C详情_03SX093000C详情_04SX093000C详情_05SX093000C详情_06SX093000C详情_07

洗脱机详情新_05

803_洗脱机详情新_07

洗脱机详情新_08

洗脱机详情新_09

洗脱机详情新_10

洗脱机详情新_11

洗脱机详情新_12


Previous:
Next:
SX093000C LCD computer board controller controller of industrial automatic washing machine Commercial washing machine accessories

Kefalong is mainly engaged in industrial washing equipment, drying equipment and ironing equipment. the products include industrial horizontal washing machine, automatic washing machine, industrial dryer, industrial dehydrator, industrial ironing machine, dry washing machine, folding machine and other equipment.
