Fully Automatic Washing Machine Gw09D Controller Computer Board Made in China

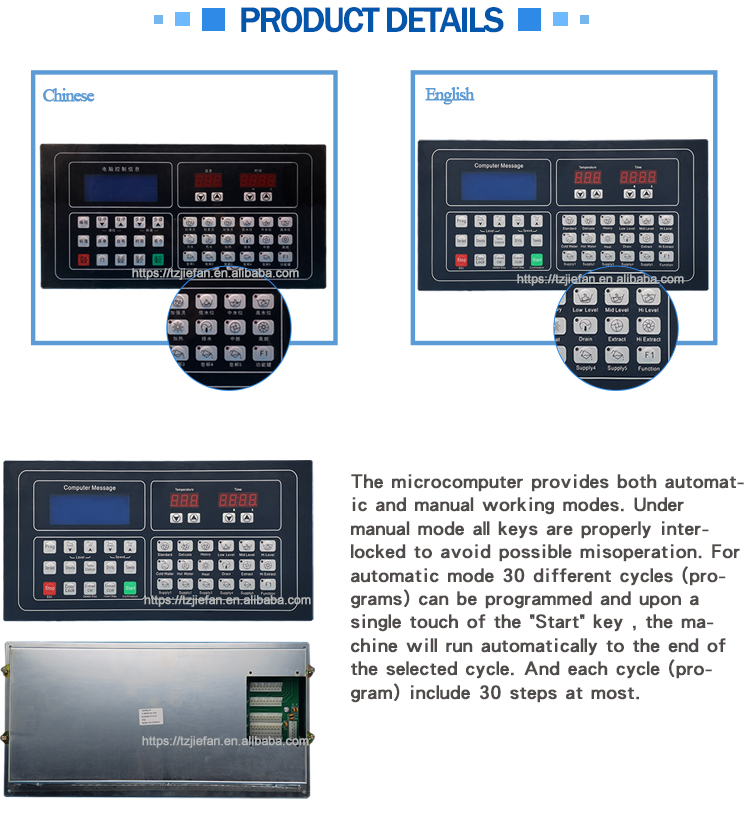

GW09D microcomputer control panel is specially designed for the control of washer-extractor. It features stability and reliability in operation and adequacy in functions with 12 inputs and 24 outputs as well as simultaneous control of one temperature point. Also as RS-485 interface is prepared for control of inverter equipped in washer-extractor. GW09D microcomputer includes the electronic water level system that constantly monitors the level of the water in the washwheel and displays the level in digits.
